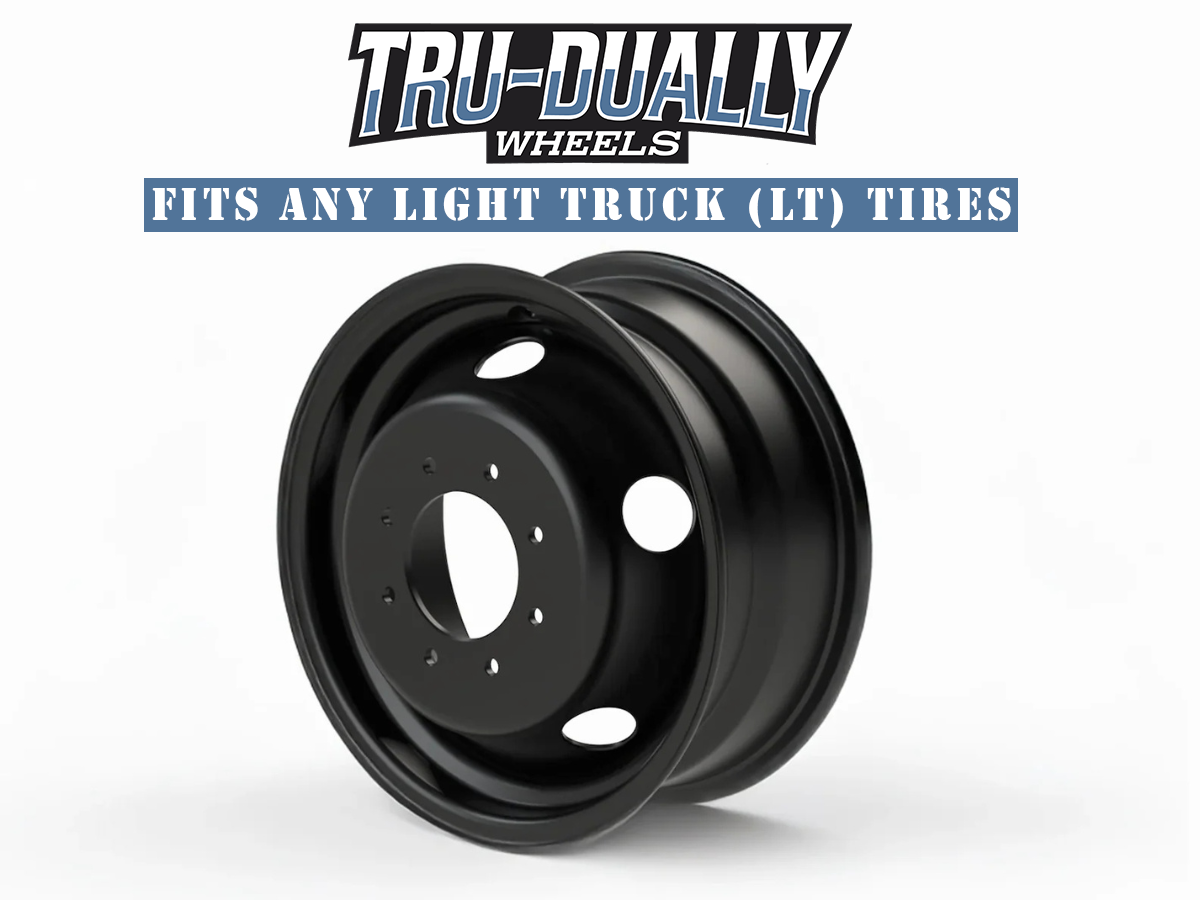

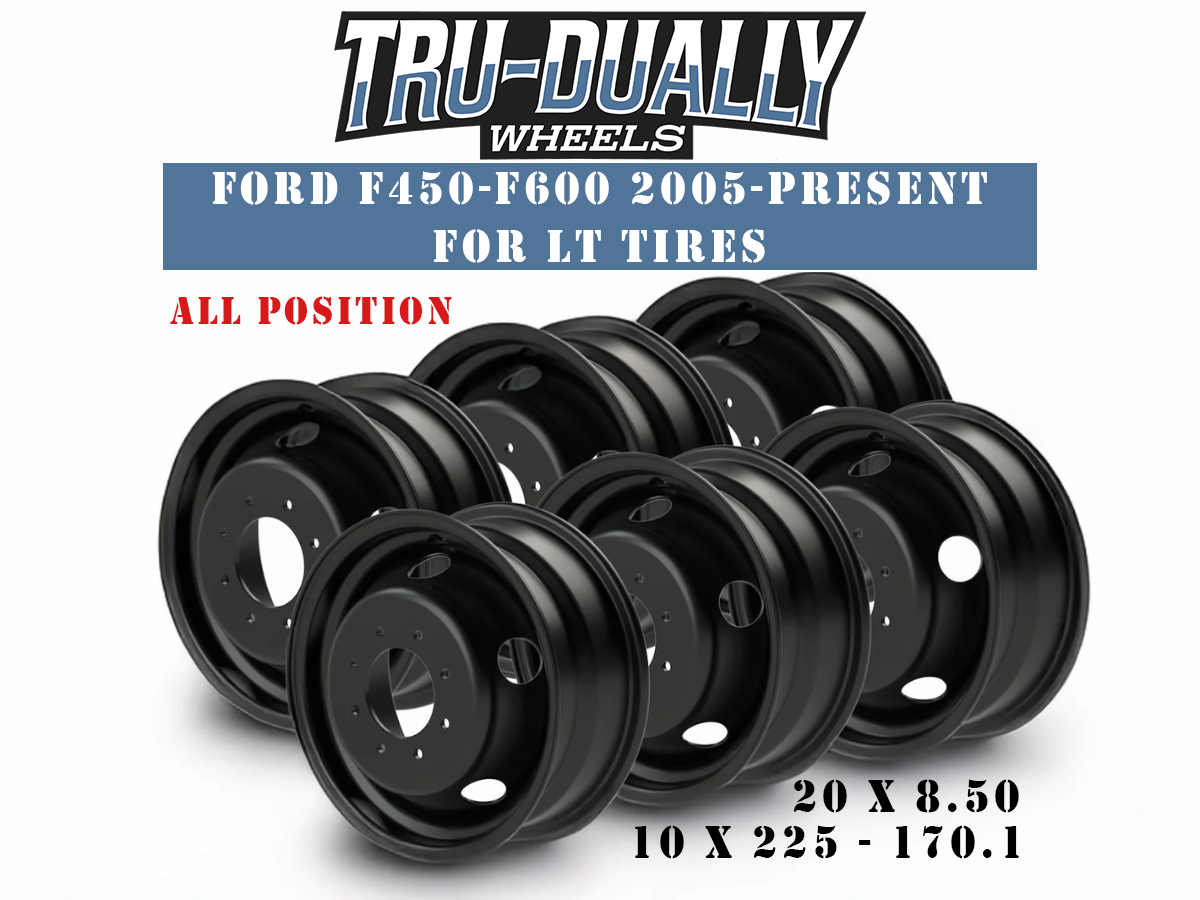

The Tru-Dually 20x8.5 LT Steel Wheel is the go-to direct bolt-on dually wheel for Ford F-450, F-550, and F-600 work trucks. Featuring the 10-lug 10x225mm bolt pattern found across Ford's heavy commercial truck lineup, this wheel is engineered from all-position steel construction to handle the extreme demands of fleet, towing, and vocational use.
Ford Direct-fit replacement for Ford F-450, F-550, and F-650 dually trucks
Ram 4500-5500 may need a shim in steering lock to prevent rubbing on drag bar because ram uses multiple front end variations 1/4 inch spacer
20x8.5 steel construction with all-position hub-centric design
10x225mm bolt pattern — exact spec for Ford Super Duty and medium-duty commercial dually applications
170.1mm center bore for precise hub-centric fitment
DOT-approved with 4,400 lbs
Accepts tires up to 37x11.50 R20 or 275/80 R20 at full rating , no 295 or 12.5 tires without a rear spacer

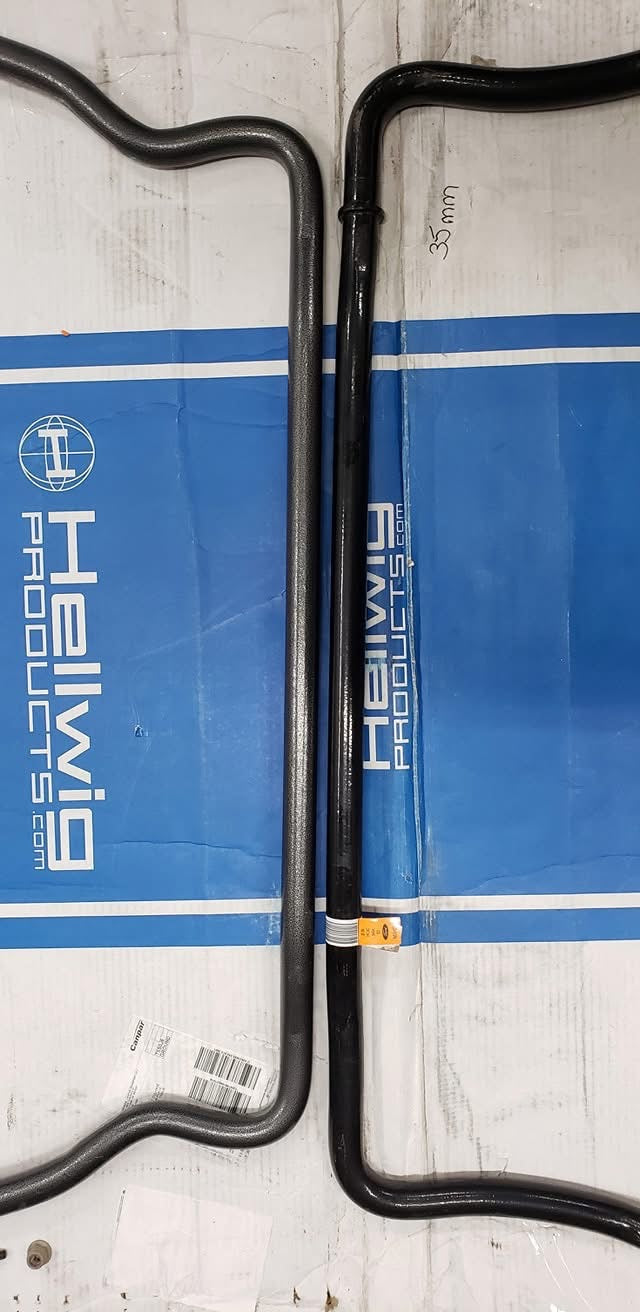

For Ford 35" and 37" narrow sway bar recommended for f450-600 (helwig 7712 or stock f350 sway bar )
Compatible with factory lug nuts and center caps — see fitment pictures for ford caps need 8mm trim
Air bags inboard airbags or timbren are recommended , outboard air bags such as logic come out to far and may rub inside rear tire
Precision-machined hub surface with durable powder-coat finish
Wheel weight: 71 lb each
Classified among heavy-duty 20x8.5 dually wheels for sustained work-truck and commercial service
