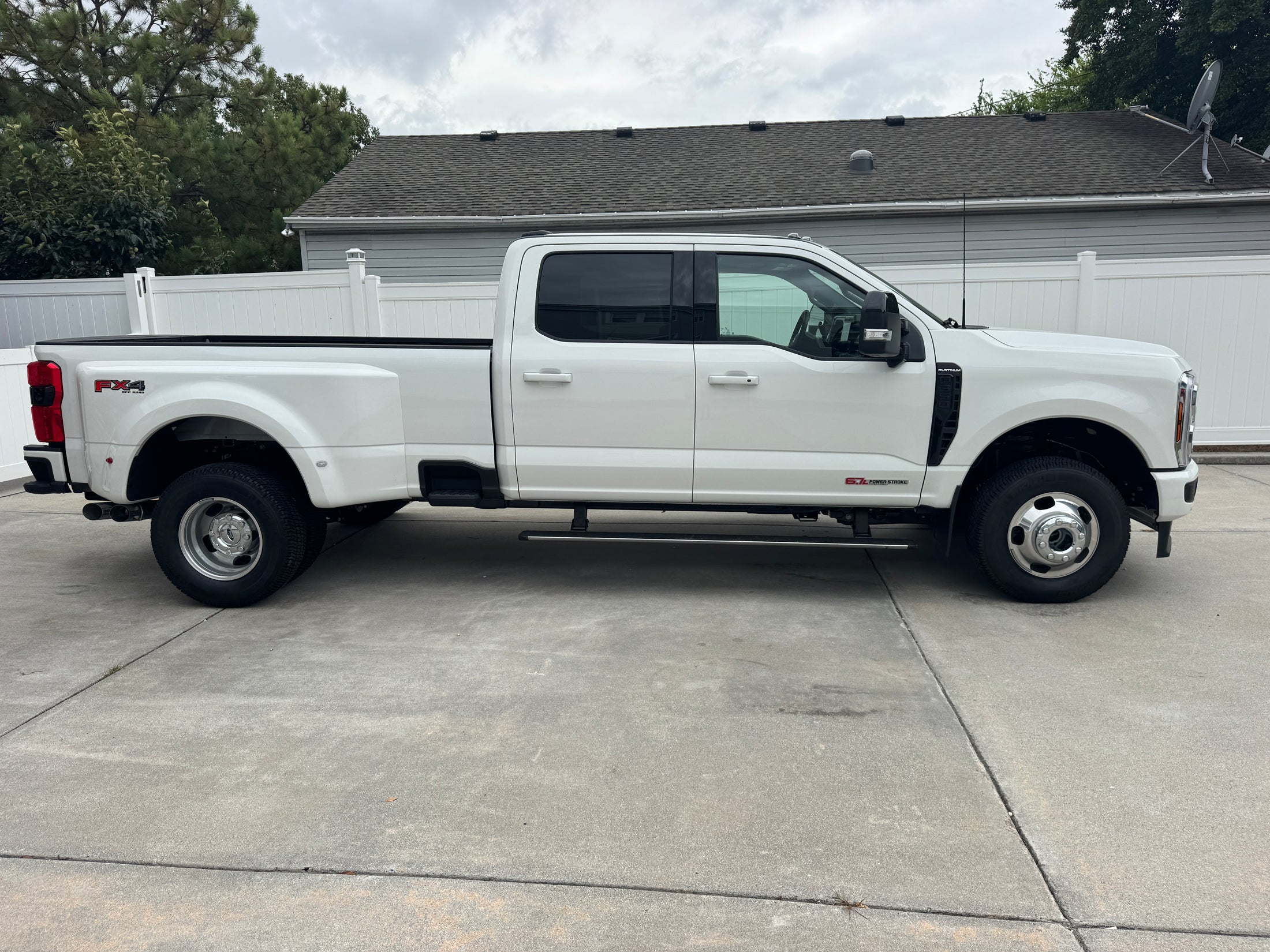

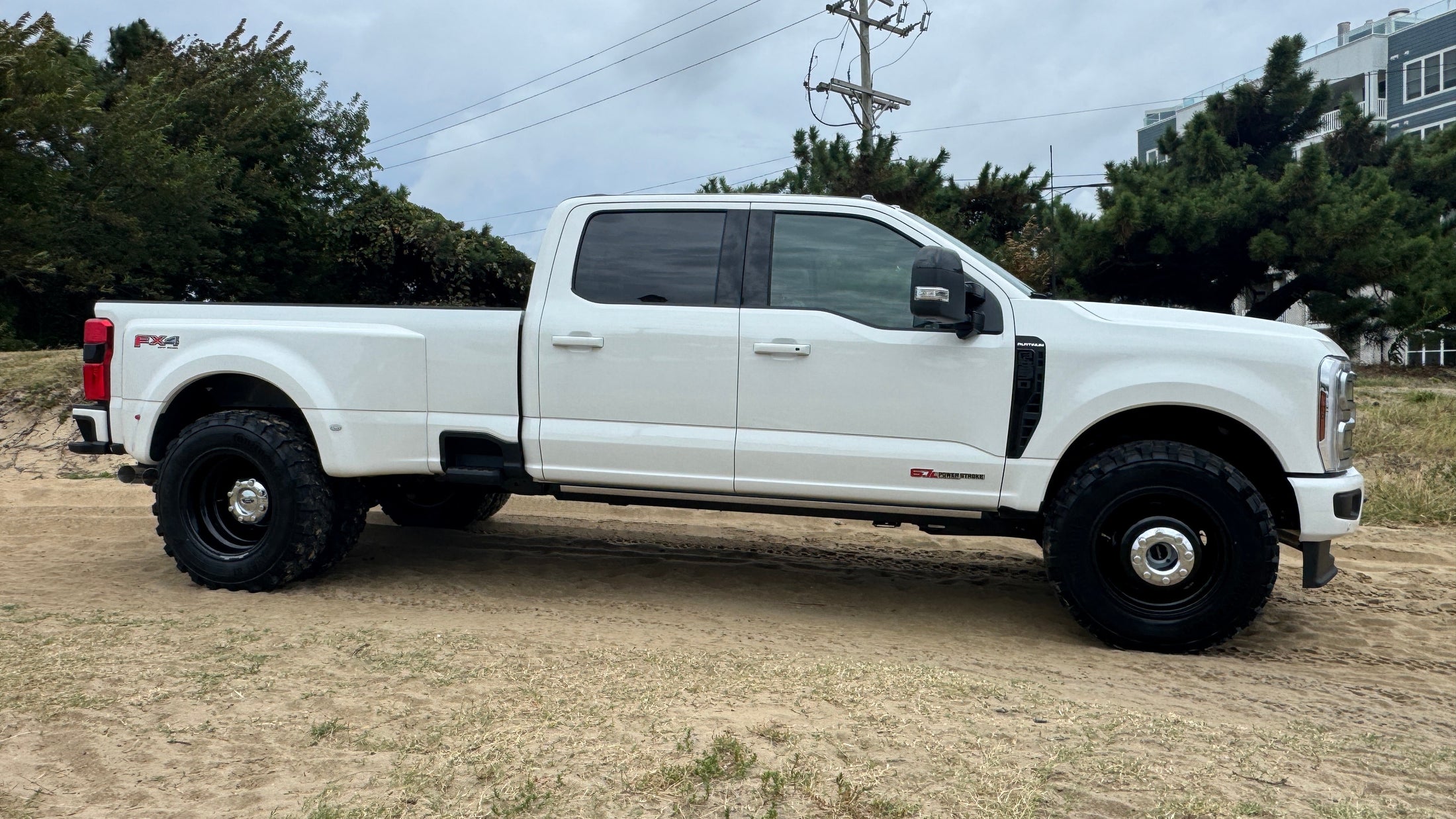

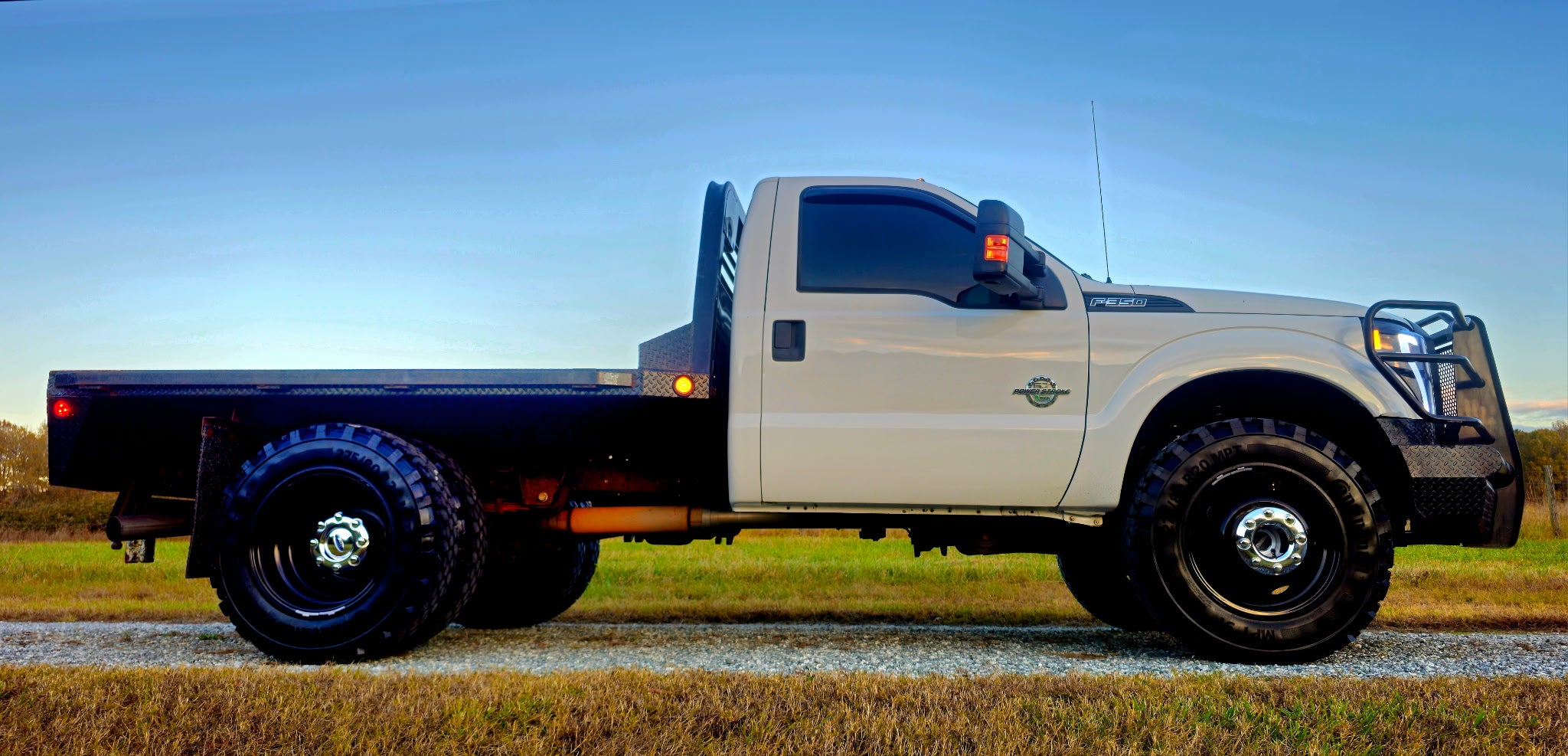

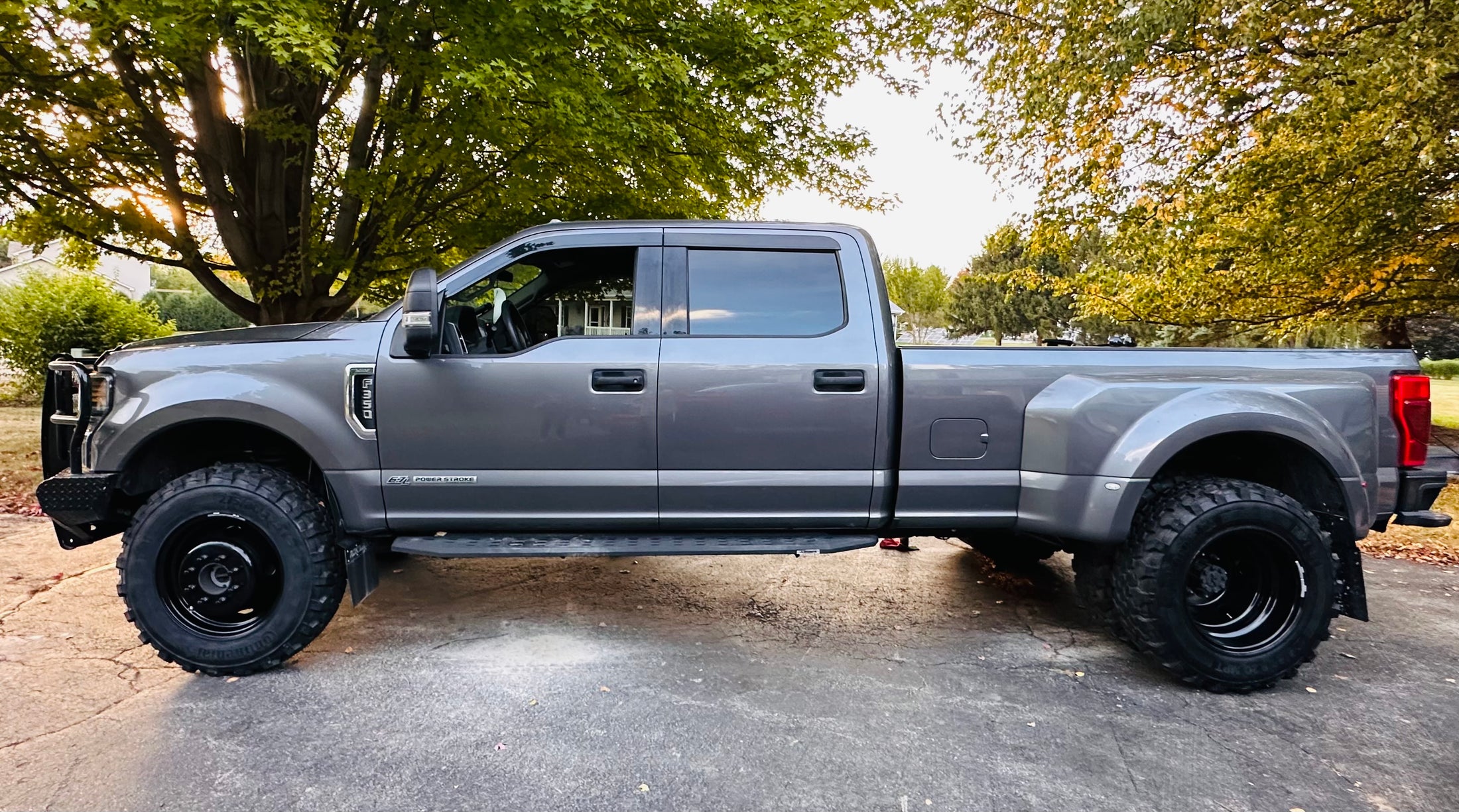

8x200 | 8.25x20 MPT Ford F-350 2005-Up Spare + Continental MPT81 275/80r20

8x200 20x8.25 Steel Tru-Dually wheels direct bolt-ons all position, Ford F350

• 2005 to present, Fits 2017 up with no lift kit or 2" leveling kit with sway bar relocation bracket that moves sway bar forward
• 8.25 × 20 8x200 Tru-Dually wheels — all-position, steel construction, powder coated for lasting strength
• Completely hub-centric; accepts factory lug nuts and center caps with 8mm trim (see pictures)
• Load-rated to 5,060 lb (137 k); DOT-approved
• Cleared for tires up to 37x11.50 R20 or 275/80 R20
• Factory tested with Continental MPT81 275/80 R20 tires
• Precision-machined hub surface and durable powder-coat finish
• Wheel weight: 71 lb each
• Hub bore: 125.1
• MPT bead

DUAL REAR OFFSET

• The overall width of both inner and outer wheels bolted together.
• Distance from hub to inner lip
• Distance from hub to outer lip
• Distance between both rear wheels
• Tire bead seat width
• The DOT minimum space between the rear dually tires is 1/2″ (1.27cm). Safe at maximum load capacity to prevent small debris from getting lodged between the rear tires which could result in wear and punctures.
• Depending on the tire size - spacers between the duals, or on the hub could be necessary to give more clearance.
